roloFlash 2

Art. No.: 2000

Mobile Microcontroller Programmer for microcontrollers from ST Microelectronics (STM32) as well as the Atmel/Microchip-AVR series (ATxmega/ATmega/megaAVR/ATtiny)

Manufacturer: halec

360.00 €

excl. 19% German VAT.,
plus shipping.

428.40 € incl. 19% German VAT (if delivered to Germany), plus shipping.

Buy in the halec-Shop

Delivery time: 2-5 days

Bulk prices:
pcs	Discount	net	gross*
3	3%	349.20 €	415.55 €
10	5%	342.00 €	406.98 €
50	10%	324.00 €	385.56 €
100	12%	316.80 €	376.99 €

*including 19% German VAT

Please note:

roloFlash 2 is fully compatible to roloFlash 2 AVR. For mechanical plug compatibility to roloFlash 2 AVR an additional target adapter is necessary.

roloFlash product line

roloFlash comparison table

Downloads

Please note:

The firmware of roloFlash 2 can be upgraded or downgraded to any desired version at any time.

Plug on - Done!

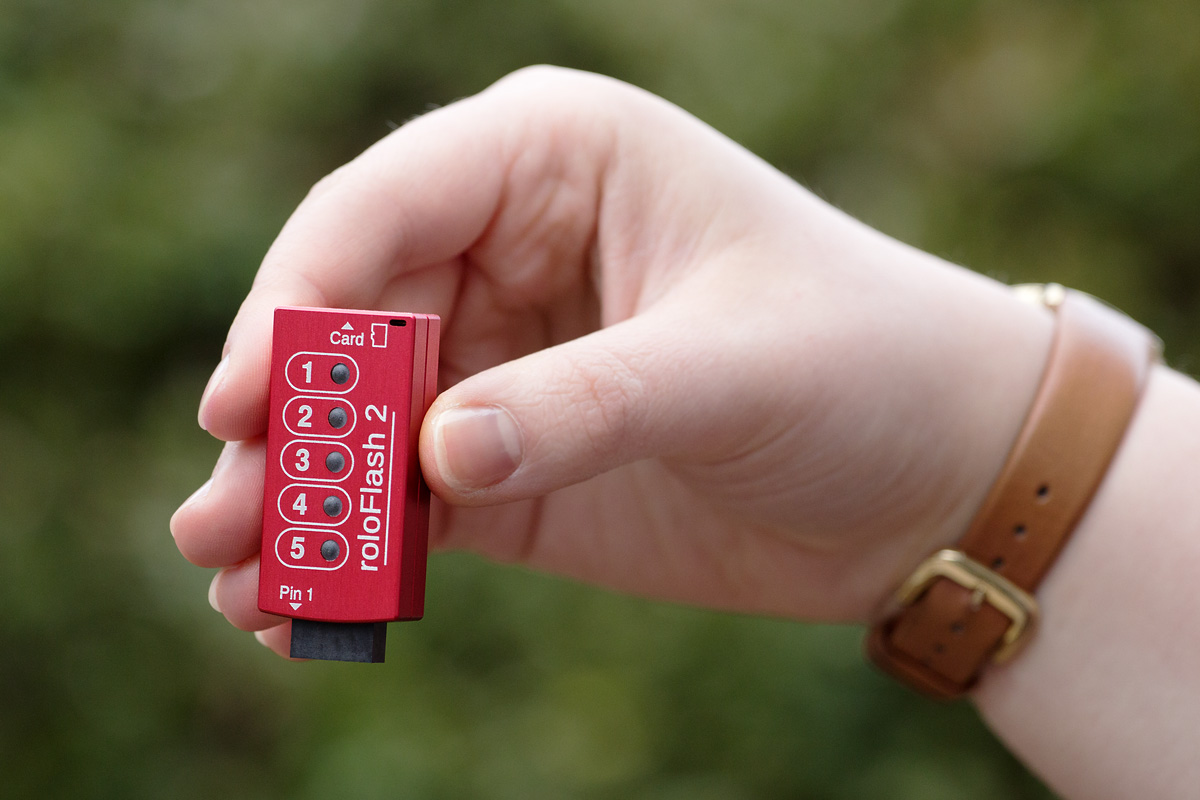

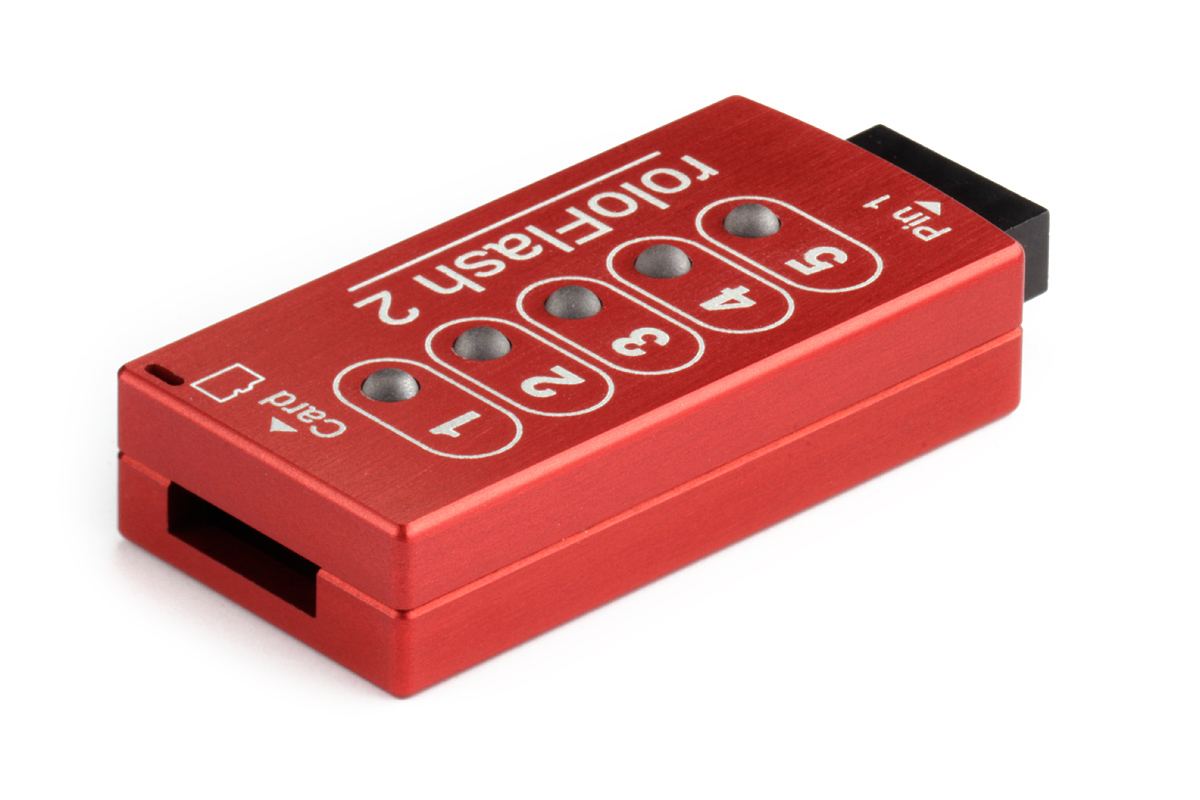

roloFlash® 2 is a mobile programmer for flashing (“flash programmer”) ARM Cortex based ST Microelectronics microcontrollers (STM32F0, STM32F1, STM32F2, STM32F3, STM32F4, STM32F7, STM32G0, STM32H7, STM32L0, STM32L1, STM32L4, STM32L4+) as well as Atmel AVR series microcontrollers (ATxmega, ATmega, megaAVR, ATtiny) in the shortest possible time and with minimal interaction. Power is supplied by the microcontroller to be programmed.

It gets populated with a microSD card containing the data to be flashed, after which it is able to program microcontrollers without a PC, at any location.

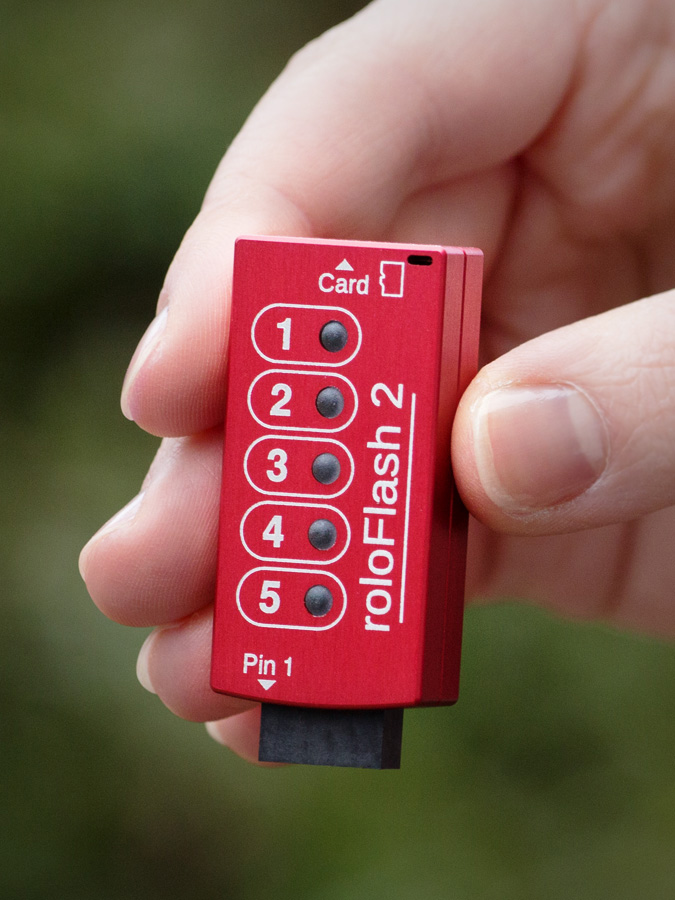

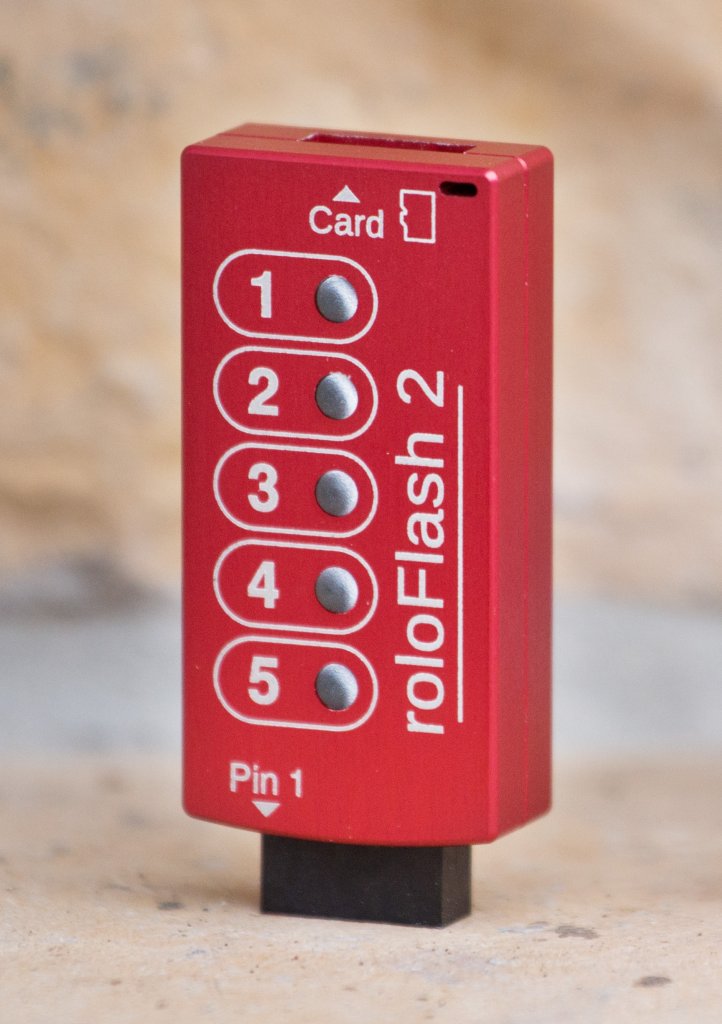

5 bi-color LEDs visualize the progress and the result of the process, which can be user-controlled with roloBasic® (example script).

roloFlash 2 provides the following advantages:

Mobility, versatility, safety
Easy and reliable updates at your customers
Robustness:
- Protection against shortcircuits, reverse polarity, and overvoltage of up to +/-20 volts
- Employment of ESD protection components, which fulfill IEC 61000-4-2 level 4 (15 kV (air discharge), 8 kV (contact discharge))
No PCs and specific tool chains necessary in field use / customer environment / large- and small-batch production
Uniform process for all supported microcontroller families
Potential-free

Technical Data

Supports the following controllers:
Via JTAG / SWD:
- STM32F0
- STM32F1
- STM32F2
- STM32F3
- STM32F4
- STM32F7
- STM32G0
- STM32H7
- STM32L0
- STM32L1
- STM32L4
- STM32L4+
- STM32WB
Via PDI:
- ATxmega
Via UPDI:
- ATmega/atmegaAVR-0-series
- ATtiny 1-series
Via ISP:
- ATtiny (only those with ISP interface)
- ATmega
- AT90
Via TPI:
- ATtiny 4/5/9/10

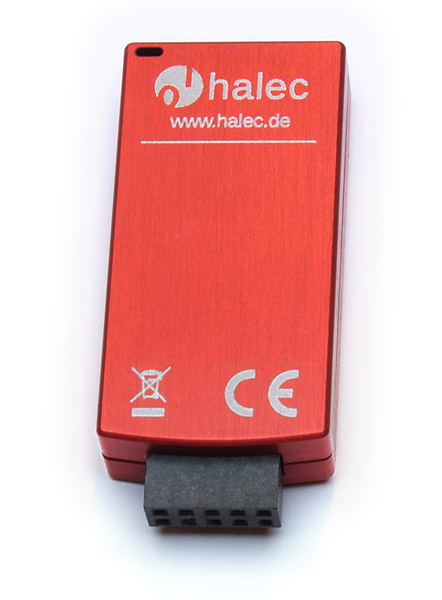

Programming of target microcontroller via 10-pin low-density header (same pinout as ARM Cortex Debug high density header) or via available target adapters
Power supply via the microcontroller to be programmed (2.0 - 5.5 volts)
Programming of
- Flash
- EEPROM*
- Fuse bits*
- Lock bits*
^* depending on family
Procedural reading and writing of target memory, e.g. for programming of serial numbers
Readout of target memory and storing as file in hex or raw format
2 x UART for general communication purposes
GPIO control (5 x I/O, 2 x Input) via roloBasic for general control purposes
Supported file formats:
- Intel HEX (“.hex”) (I8HEX, I16HEX, I32HEX)
- Raw / Binary
Supported memory card formats:
- microSD
- microSDHC
Supported operating systems for roloBasic compiler: Windows / Linux
Typical current draw:
- Standard mode: approx. 20mA at 3.3V
- Hi-Speed-Modus: approx. 80mA at 3.3V
Measures: 52 mm x 23 mm x 11 mm
Weight: 16 g

Scope of delivery

roloFlash 2 (without target adapters)
microSDHC card, completely preconfigured for use with roloFlash 2:
- Formatted to FAT32
- Documented roloBasic example scripts
- Complete documentation for roloFlash 2 and roloBasic
- roloBasic compiler
