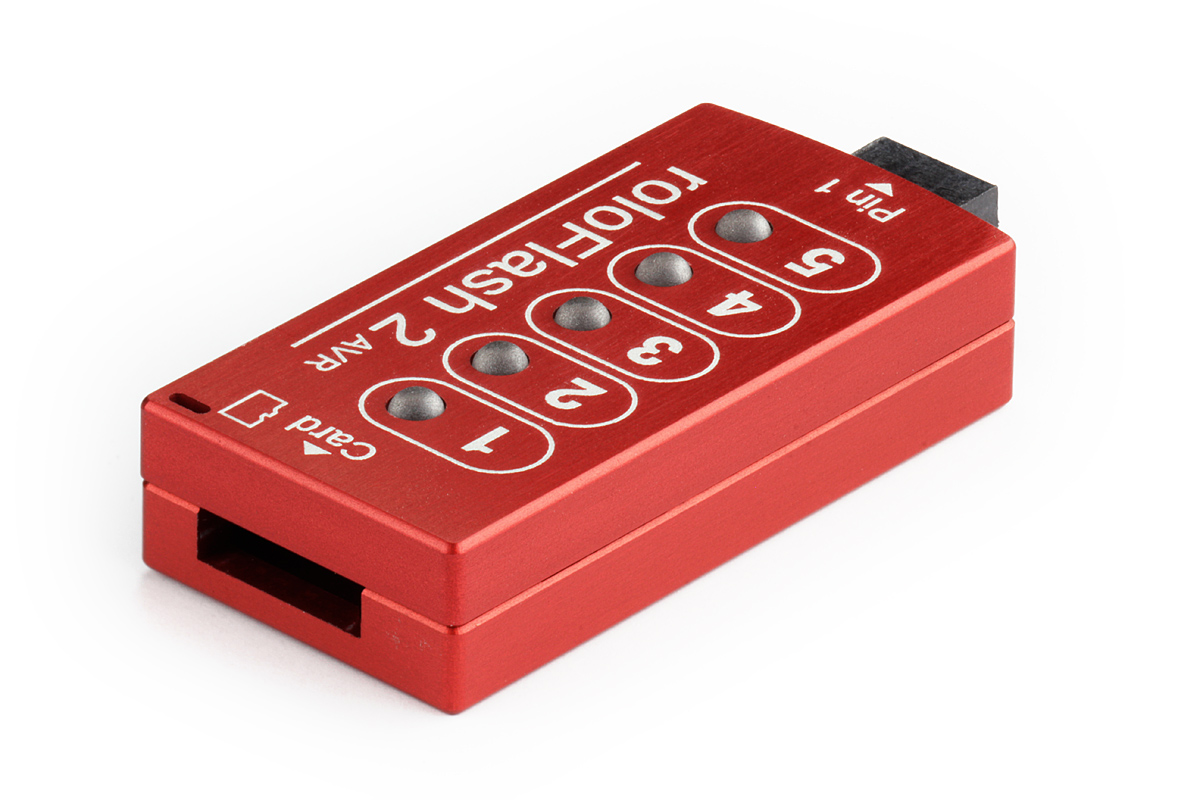

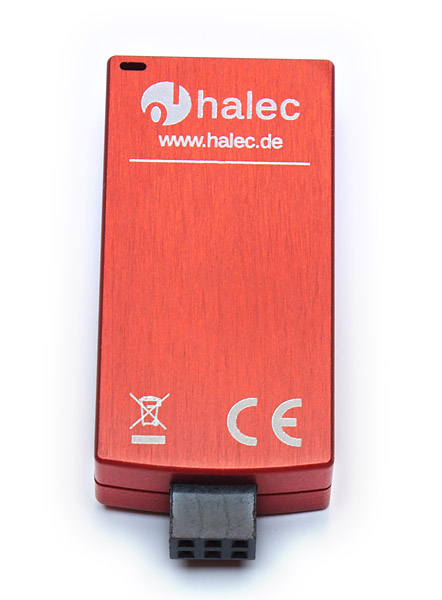

roloFlash 2 AVR

Art. No.: 2001

Mobile Microcontroller Programmer for microcontrollers of the Atmel/Microchip-AVR series (ATxmega/ATmega/megaAVR/ATtiny)

Manufacturer: halec

360.00 €

excl. 19% German VAT.,
plus shipping.

428.40 € incl. 19% German VAT (if delivered to Germany), plus shipping.

Buy in the halec-Shop

Delivery time: 2-5 days

Bulk prices:
pcs	Discount	net	gross*
3	3%	349.20 €	415.55 €
10	5%	342.00 €	406.98 €
50	10%	324.00 €	385.56 €
100	12%	316.80 €	376.99 €

*including 19% German VAT

Downloads

• Quickstart Guide roloFlash 2
• Manual roloFlash 2 AVR
• Manual roloBasic
• roloBasic sample script
• All downloads for the roloFlash 2 family

Plug on - Done!

roloFlash® 2 AVR is a mobile programmer for flashing Atmel AVR series microcontrollers (ATxmega, ATmega, megaAVR, ATtiny) in the shortest possible time and with minimal interaction. Power is supplied by the microcontroller to be programmed.

It gets populated with a microSD card containing the data to be flashed, after which it is able to program microcontrollers without a PC, at any location.

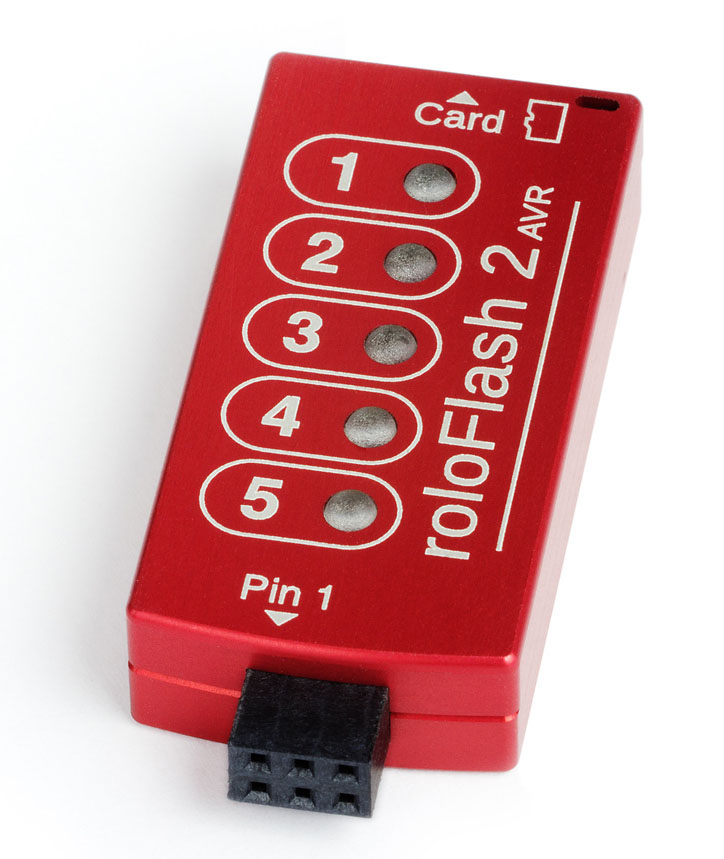

5 bi-color LEDs visualize the progress and the result of the process, which can be user-controlled with roloBasic® (example script).

roloFlash 2 AVR provides the following advantages:

• Mobility, versatility, safety
• Easy and reliable updates at your customers
• Robustness:
  • Protection against shortcircuits, reverse polarity, and overvoltage of up to +/-20 volts
  • Employment of ESD protection components, which fulfill IEC 61000-4-2 level 4 (15 kV (air discharge), 8 kV (contact discharge))
• No PCs and specific tool chains necessary in field use / customer environment / large- and small-batch production
• Uniform process for all supported microcontroller families
• Potential-free

Technical Data

• Supports the following controllers:
  Via PDI:
  • ATxmega
  Via UPDI:
  • ATmega/atmegaAVR-0-series
  • ATtiny 1-series
  Via ISP:
  • ATtiny (only those with ISP interface)
  • ATmega
  • AT90
  Via TPI:
  • ATtiny 4/5/9/10
• Programming of the microcontroller via 6-pin TPI/ISP/PDI/UPDI header (no adapter necessary)
• Power supply via the microcontroller to be programmed (2.0 - 5.5 volts)
• Programming of
  • Flash
  • EEPROM
  • Fuse bits
  • Lock bits
• Procedural reading and writing of target memory, e.g. for programming of serial numbers
• Readout of target memory and storing as file in hex or raw format
• Supported file formats:
  • Intel HEX (“.hex”) (I8HEX, I16HEX, I32HEX)
  • Raw / Binary
• Supported memory card formats:
  • microSD
  • microSDHC
• Supported operating systems for roloBasic compiler: Windows / Linux
• Typical current draw:
  • Standard mode: approx. 20mA at 3.3V
  • Hi-Speed-Modus: approx. 80mA at 3.3V
• Measures: 52 mm x 23 mm x 11 mm
• Weight: 16 g

Scope of delivery

• roloFlash 2 AVR
• microSDHC card, completely preconfigured for use with roloFlash 2 AVR:
  • Formatted to FAT32
  • Documented roloBasic example scripts
  • Complete documentation for roloFlash 2 AVR and roloBasic
  • roloBasic compiler

Available Accessories

• Target adapter roloFlash 2 AVR 1:1, 6pin
• Target adapter roloFlash 2 AVR to Atmel ISP 10pin
