Please note:

This model has been replaced by roloFlash 2 AVR!

All adapters for roloFlash 2 AVR can also be used for roloFlash AVR.

roloBasic scripts for roloFlash AVR cannot be used directly with the roloFlash 2 family. The Migration Guide assists in porting your scripts, and we are happy to provide personalized support throughout the process.

Additional Information

• Quickstart roloFlash AVR, base version (v1.0.1)
• Manual roloFlash AVR
• Manual roloBasic (v1.0)
• roloBasic example script: NORMAL.BAS
• Migration Guide from roloFlash AVR to the roloFlash 2 family

Plug on - Done!

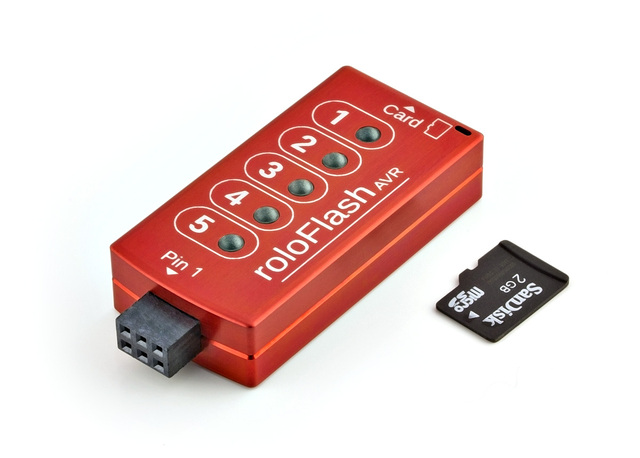

roloFlash AVR is a mobile programmer for flashing Atmel AVR series microcontrollers in the shortest possible time and with minimal interaction.

It gets populated with a microSD card containing the data to be flashed, after which it is able to program microcontrollers without a PC, at any location.

5 bi-color LEDs visualize the progress and the result of the process, which can be user-controlled with roloBasic (example script).

roloFlash provides the following advantages:

• Mobility, versatility, safety
• Easy and reliable updates at your customers
• No PCs and specific tool chains necessary in field use / customer environment / large- and small-batch production
• Uniform process for all supported microcontroller families
• Potential-free
• Low-priced solution

Technical data

• Supports Atmel AVR series controllers with ISP interface:
  • ATtiny (not ATtiny4/5/9/10)
  • ATmega
  • AT90
• Programming of the microcontroller via 6-pin ISP header
• Power supply via the microcontroller to be programmed (2.0 - 5.5 volts)
• Programming of
  • Flash
  • EEPROM
  • Fuse bits (LO, HI, EXT)
  • Lock bits
• Supported file format: Intel HEX (“.hex”)
• Supported memory card formats: microSD, microSDHC
• Supported operating systems for roloBasic compiler: Windows 2000 / XP / Vista / 7
• Measures: 52 mm x 23 mm x 11 mm
• Weight: 16 g

Scope of delivery

• roloFlash AVR
• microSDHC card, completely preconfigured for use with roloFlash AVR:
  • Formatted to FAT32
  • Documented roloBasic example scripts
  • Complete documentation for roloFlash AVR and roloBasic
  • roloBasic compiler

Demo video: Preparation roloFlash with roloBasic (German only)

Demo video: mobile flashing with roloFlash (German only)
